TECNOSOFT is placed in Peschiera Borromeo, close to Milan, and since several years now has been involved in the development and manufacture of hardware and software data acquisition systems for the medical, geotechnical and automation field.
Since 2003 TECNOSOFT has applied its know-how and experience in order to develop a new range of systems that monitor temperature and humidity. TECNOSOFT solutions, thanks to their flexibility and variety, satisfy the different requirements of all operators in the pharmaceutical, food, energy and environmental field. The range of equipment is continuously updated with new devices, in order to cover each and every aspect of production and process control. The constant support we offer our Customers includes assistance over the phone for any type of problem, on line support, via Internet, with remote desktop control and on-site installation of the system.
Since 2002 TECNOSOFT has implemented a Quality System for the development of firmware and software, based upon the UNI EN ISO 9001:2008 standards and is certified by BVQI.
The SterilCyl Radio is the wireless online monitoring and data logging system
for high temperatures (up to 140°C) developed by Tecnosoft. It is made up by a cylindrical body made of PEEK, a plastic material highly resistant and food compatible; metallic parts are in AISI316L stainless steel. The main body diameter is 35 mm, the length 132 mm. It is available with a 3 mm diameter Probe of different length, even on demand; the probe is ideal for cans, food packages and jars. The data logger, therefore, has numerous applications in the food industry, where it is possible to monitor the actual product and not simply the environment in which it is manufactured. It is used, for example, to control meat and ham cooking, food packages, cans. The radio transmission allows to watch on the PC monitor the temperature and the F0/PU curves in real time, and set also threshold alarms.
*Tecnosoft data loggers series has also instruments for temperature and relative humidity measurement. These instruments, as all Tecnosoft systems, feature a high precision and are very easy to use. They can be provided with a SIT (Italian Reference Center for measurement, equivalent to NIST) traceable calibration certificate
The HumiStick is a miniature temperature and humidity data logger, measuring just 50 X 22 mm and is 15 mm high. Its reduced size together with the fact that it does not need an external power supply makes it an extremely versatile system. A special filter protects the sensor from external contaminants and guarantees correct readings.
The data logger can be supplied with calibration certificate with SIT (Italian reference center, NIST equivalent) traceability
Pressure and temperature data loggers
TS Manager System
FDA 21 CFR Part 11 compatible validation system
A Complete System for Thermal Validation
The TS Manager is a complete solution developed by Tecnosoft for all who need to monitor temperature in autoclaves, pasteurisers and in general high temperature processes and want to validate the process itself. It is based on the software with the same name, TS Manager, which is compatible with FDA 21 CFR Part 11 regulations, and all of high temperature Tecnosoft devices, along with the PressureDisk for temperature and pressure monitoring.
All of them can work up to 140°C and resist at least up to 6 bar of pressure and can be used to map the autoclave and check if it is working well. All devices are made of food grade materials and are submersible, so that they can be used easily also in the food industry.
With the TS Manager system it is possible to validate equipment and processes by professional validators.
The devices

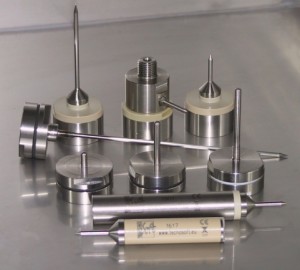

The TS Manager systems can be used with the PressureDisk and all devices for high temperature from Tecnosoft. All the loggers are made in food grade material (stainless steel AISI 316L and PEEK), are IP68, resist up to 140°C and 5 bar.
Each device has been studied for specific applications and therefore has different feature. Choose the logger that best fit your application, either being it a pharmaceutical/medical or a food application.

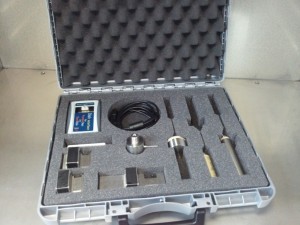

The system is provided in an elegant case with all devices, cables, accessories, software and calibration certificates.
Loggers supported
- Pasteurdisk and Pasteurdisk Probe
- Sterildisk and Sterildisk Probe
- PasteurCyl
- SterilCyl
- PasteurDisk Jumbo
- SterilDisk Jumbo
- SterilCyl Jumbo
- PasteurCyl Jumbo
- SterilDisk Can
- PasteurDisk Can
- PressureDisk
All loggers are provided with a calibration certificate SIT (NIST equivalent) traceable. Calibration is made on different points of temperature and temperature / pressure for the PressureDisk.
If you need special calibration points, ask for availability
